3106
3106 - Downlight

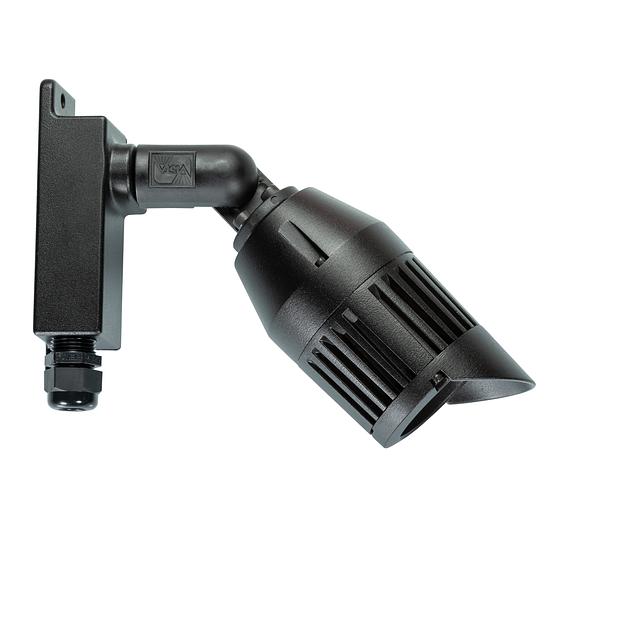

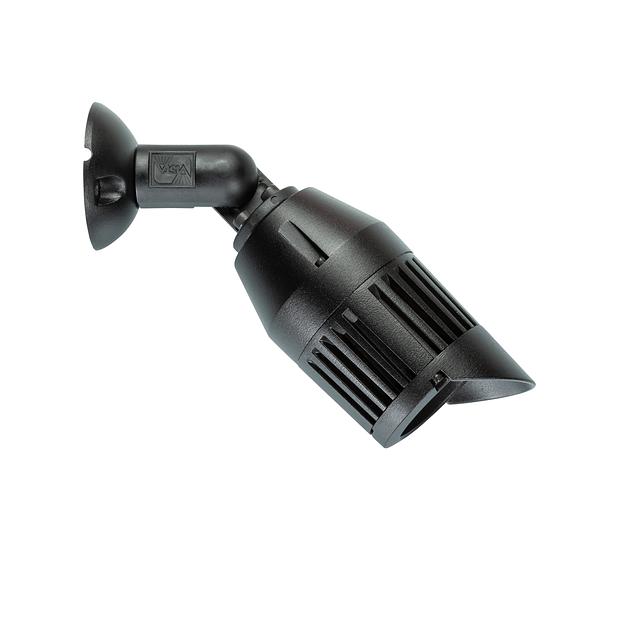

The 3106 Low Voltage Downlight Fixture is a fully integrated lighting solution, equipped with high-density array (HDA) LEDs. This fixture features high-performance reflector optics and integral drivers, all housed within a durable A360 die-cast, copper-free aluminum body. Capable of delivering up to 750 lumens, it offers wattages ranging from 4.5W to 13W, with color temperatures available from 2700°K to 5000°K. Designed with functionality in mind, the door of the 3106 is crafted to efficiently shed water from the lens surface, enhancing its longevity. A robust polyester powder coat finish, available in 18 color options, adds to its durability and aesthetic appeal. The fully adjustable knuckle is constructed from injection-molded, fiber-reinforced composite, effectively protecting the fixture from corrosive soil. For versatile installation, the 3106 includes mounting hardware, with options for a mounting canopy or tree-mount canopy, catering to a variety of lighting needs.
Resources
Beam Angle
- 16
- 19
- 30
- 50
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI

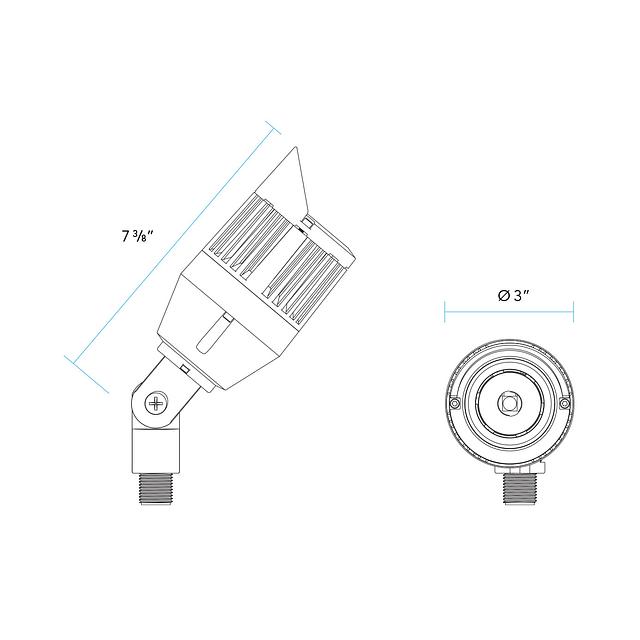

Dimensions
- H: 6 In. L: 3 In. W: 3 In.
Lamp Source
- LED
Listings
- cULus
Lumens
- 214 Lm
- 269 Lm
- 321 Lm
- 332 Lm
- 364 Lm
- 487 Lm
- 542 Lm
- 566 Lm
- 687 Lm
- 711 Lm
- 738 Lm
Materials
- Aluminum
Static LED Color
- White
Voltage
- 12 V
Watts
- 4.5 w
- 9.5 w
- 13 w
