4007

4007 - Path & Spread Lights

The 4007 is a highly functional low voltage path light fixture constructed of CNC milled, copper-free A360 US aluminum that is post milled anodized and powder coated for maximum corrosion and protection (available in 18 colors). The adjustable shroud accepts up to two internal accessories (optional- lenses, louvers, filters, etc.) and is fitted to the housing with a high temperature silicone O-ring gasket providing a superior weather tight seal, while allowing for easy removal of the shroud during re-lamping. A clear, tempered, shock and heat resistant soda-lime glass lens safeguards the lamp and optics. The stem is a ½" corrosion-resistant 6061 T-6 schedule-40 aluminum and adjustable aiming mechanism allows up to 330º vertical rotation. Available in 4.5W & 5.5W LED MR-16; and 15°, 25°, 36° and 60° beam spread options.   The 4007 is shipped with a standard 4.5W, 36° medium flood MR-16 LED lamp, unless otherwise specified. Mounting hardware is included – ABS ground stake.
Specification Sheet

Resources

Specsheets


Photometry


Install Guides


Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

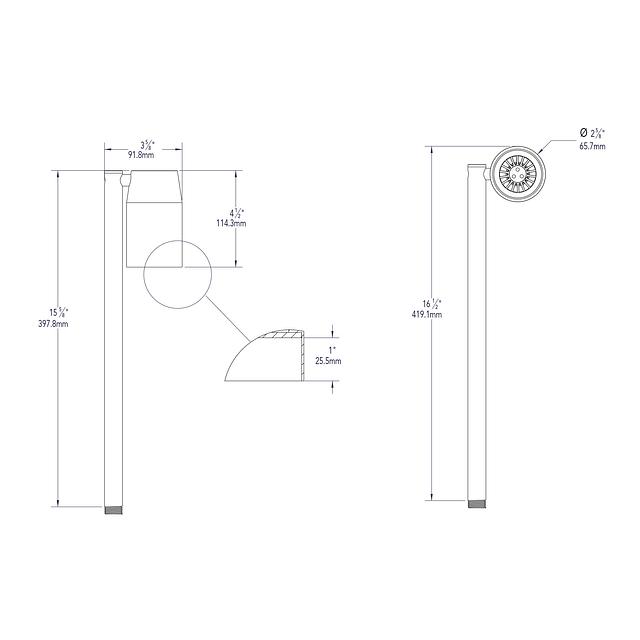

Dimensions

  • H: 15.625 In. L: 3.625 In. W: 2.652 In.

Distribution

  • Medium Flood
  • Narrow Spot
  • Spot
  • Wide Flood

Lamp Source

  • MR-16

Materials

  • Aluminum

Shape

  • Cylinder

Watts

  • 4.5 w
  • 5.5 w
