5252

In-Ground & Well Lights

Highly controllable, this rugged low voltage well light fixture is constructed of die-cast, copper-free aluminum suspended inside a 6¾ diameter black ABS well. The lens is clear, high temperature tempered soda-lime glass for high-impact resistance, furnished with a silicone molded gasket for a watertight seal. An adjustable housing bracket provides ±45° of tilt within the well for precise beam control and locks into place preventing any disruption of lamp position during maintenance. Also, an adjustable lamp bracket provides an additional ±25° of tilt. The 5252 is shipped with a standard 20W MR16 flood lamp, unless otherwise specified.
Specification Sheet

Resources

Specsheets


Photometry


Options & Accessories


Accessories

  • Frosted Lens
  • Honeycomb Louver

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Diameter

  • 6 In.

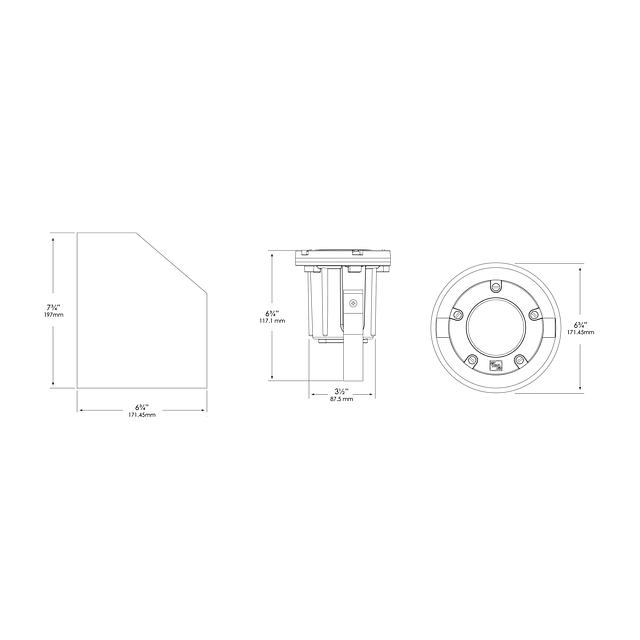

Dimensions

  • H: 7 In. L: 6 In. W: 6 In.

Distribution

  • Medium Flood
  • Narrow Spot
  • Spot
  • Wide Flood

Lamp Source

  • LED
  • MR-16

Listings

  • UL
  • cULus

Lumens

  • 389 Lm

Materials

  • Aluminum
  • Copper
  • Steel

Watts

  • 4 w
  • 5 w
