5105

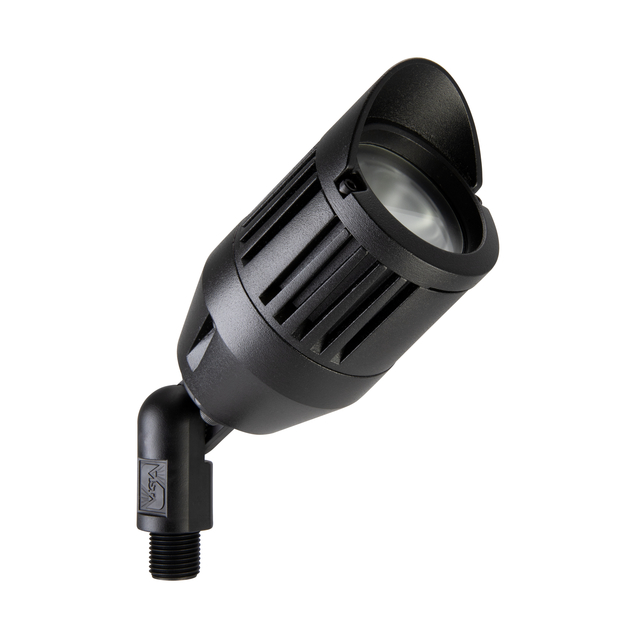

5105 - Floodlight
The 5105 Low Voltage Floodlight is a compact yet powerful lighting solution, integrating factory-fitted LEDs for high-performance illumination. Encased in a robust A360 die-cast, copper-free aluminum body, the fixture is designed for efficiency and durability. Despite its compact size, the 5105 delivers up to 400 lumens with wattages from 2W to 4W and offers color temperature choices from 3000°K to 5000°K. Its high-temperature silicone diaphragm gasket incorporates an air valve to prevent vacuum formation and water entry. The lens, available in clear or frosted tempered soda-lime glass, is shock and heat-resistant, ensuring protection for the LED and reflector. Enhanced by a durable polyester powder coat finish in 18 color options, the 5105 combines aesthetic versatility with resilience. The fully adjustable knuckle, constructed from injection-molded, fiber-reinforced composite, withstands corrosive soil, making it suitable for a variety of outdoor settings. The fixture includes diverse mounting options such as an ABS ground stake, a mounting canopy, or a tree-mount canopy, accommodating different installation requirements.
Resources
CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Dimensions
- H: 2 In. L: 2 In. W: 3 In.
Lamp Source
- LED
Listings
- cULus
Materials
- Aluminum
Mounting
- ABS ground stake
- Tree-mount junction box
- Wall-mount canopy
Static LED Color
- White
Voltage
- 12 V
Watts
- 2 w
- 3 w
- 4 w
