3106
3106 - Up & Accent

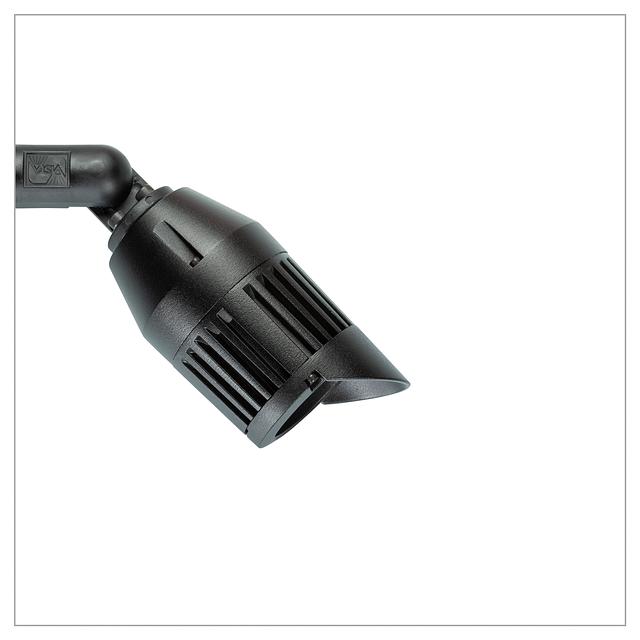

The 3106 Low Voltage Up & Accent Fixture is a fully integrated lighting solution, equipped with high-density array (HDA) LEDs. This fixture features high-performance reflector optics and integral drivers, all housed within a durable A360 die-cast, copper-free aluminum body. Capable of delivering up to 750 lumens, it offers wattages ranging from 4.5W to 13W, with color temperatures available from 2700°K to 5000°K. Designed with functionality in mind, the door of the 3106 is crafted to efficiently shed water from the lens surface, enhancing its longevity. A robust polyester powder coat finish, available in 18 color options, adds to its durability and aesthetic appeal. The fully adjustable knuckle is constructed from injection-molded, fiber-reinforced composite, effectively protecting the fixture from corrosive soil. For versatile installation, the 3106 includes mounting hardware, with options for an ABS ground stake, mounting canopy, or tree-mount canopy, catering to a variety of lighting needs.
Resources
Photometry
- 3106-X-13-W-MF.IES
- 3106-X-13-W-MF.pdf
- 3106-X-13-W-SP.IES
- 3106-X-13-W-SP.pdf
- 3106-X-13-W-VNS.IES
- 3106-X-13-W-VNS.pdf
- 3106-X-13-W-WF.IES
- 3106-X-13-W-WF.pdf
- 3106-X-4.5-W-MF.IES
- 3106-X-4.5-W-MF.pdf
- 3106-X-4.5-W-SP.IES
- 3106-X-4.5-W-SP.pdf
- 3106-X-4.5-W-VNS.IES
- 3106-X-4.5-W-VNS.pdf
- 3106-X-4.5-W-WF.IES
- 3106-X-4.5-W-WF.pdf
- 3106-X-9.5-W-MF.IES
- 3106-X-9.5-W-MF.pdf
- 3106-X-9.5-W-SP.IES
- 3106-X-9.5-W-SP.pdf
- 3106-X-9.5-W-VNS.IES
- 3106-X-9.5-W-VNS.pdf
- 3106-X-9.5-W-WF.IES
- 3106-X-9.5-W-WF.pdf
- 3106_TEST_SUMMARY.pdf
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Dimensions
- H: 7 In. L: 3 In. W: 3 In.
Distribution
- Medium Flood
- Narrow Spot
- Spot
- Wide Flood
Lamp Source
- LED
Listings
- cULus
Lumens
- 135 Lm
- 214 Lm
- 269 Lm
- 321 Lm
- 332 Lm
- 364 Lm
- 487 Lm
- 542 Lm
- 566 Lm
- 687 Lm
- 711 Lm
- 738 Lm
Materials
- Aluminum
Mounting
- ABS ground stake

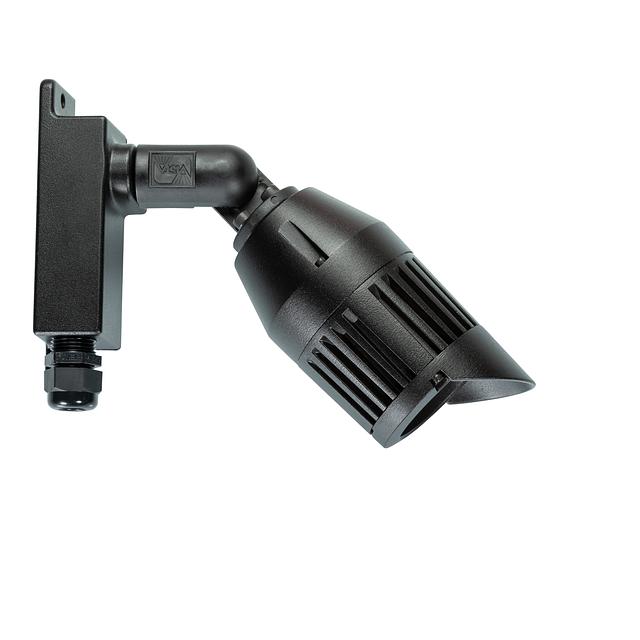

- Tree-mount junction box

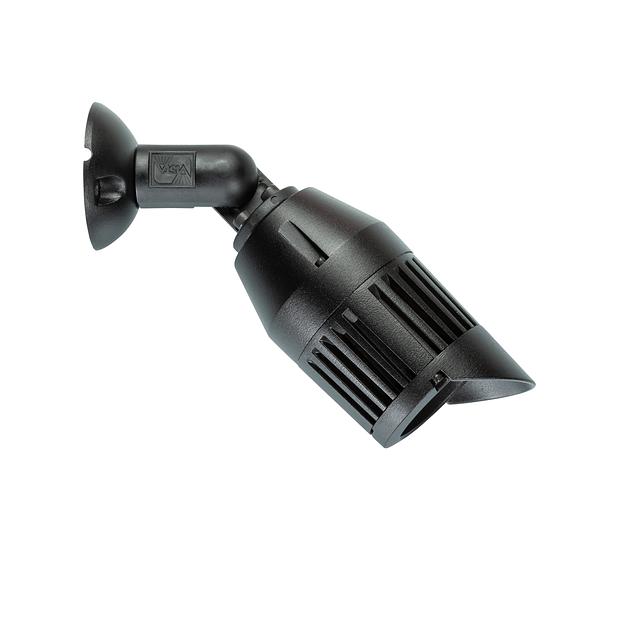

- Wall-mount canopy
Static LED Color
- White
Voltage
- 12 V
Watts
- 4.5 w
- 9.5 w
- 13 w
