5006
5006 - Up & Accent

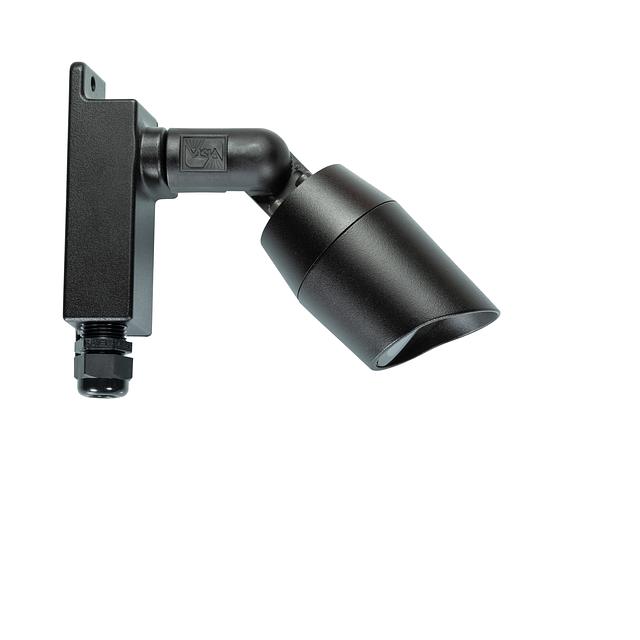

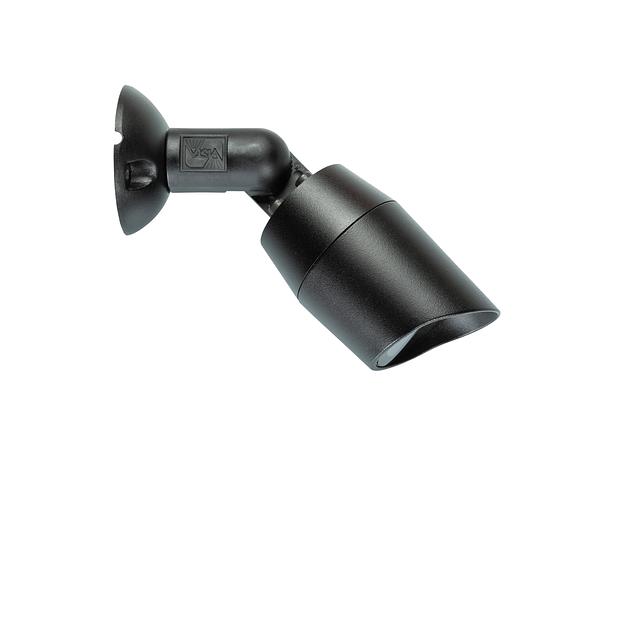

The 5006 Low Voltage Up & Accent Fixture is designed to accommodate an MR-16 lamp, emphasizing functionality and durability in its design. Constructed from A360 die-cast, copper-free aluminum, this fixture offers strength and reliability. The housing includes an oversized silicone O-ring to prevent moisture and dust intrusion, while a high-temperature silicone diaphragm gasket at the base incorporates an air valve, preventing vacuum formation and water entry. A clear, tempered soda-lime glass lens, both shock and heat-resistant, ensures the protection of the lamp and optics. Finished with a super durable polyester powder coat, available in 18 colors, the 5006 blends aesthetic appeal with resilience. The fully adjustable knuckle, made from injection-molded, fiber-reinforced composite, isolates the fixture from corrosive soil. Shipped with a standard 4.5W, 36° flood MR-16 LED lamp (unless specified otherwise), the 5006 is equipped with a range of mounting hardware options including an ABS ground stake, a mounting canopy, or a tree-mount canopy to suit diverse installation needs.
Resources
CRI
- 80 CRI

Color / Finish
- Architectural Brick
 - Architectural Bronze
 - Black
 - Dark Bronze
 - Glossy Gray
 - Granite
 - Graphite Metallic
 - Hunter Green
 - Light Bronze
 - Mocha
 - Olde Finish
 - Pewter
 - Rust
 - Special Bronze
 - Verde
 - Weathered Bronze
 - Weathered Iron
 - White

Dimensions
- H: 3 In. L: 5 In. W: 2 In.

Distribution
- Flood (40° and Greater)
 - Narrow Spot (5° - 9°)
 - Spot (10° - 19°)
 - Wide Flood

Lamp Source
- MR-16

Listings
- cULus

Lumens
- 295 Lm
 - 389 Lm

Materials
- Aluminum

Mounting
- ABS ground stake
 - Tree-mount junction box
 - Wall-mount canopy

Voltage
- 12 V

Watts
- 4.5 w
 - 5.5 w
